PV Input:
7.5 - 15KW
Working Mode:
On/Off Grid
Battery Mode:
48V
Grid Type:
Single Phase
Protection:
IP65

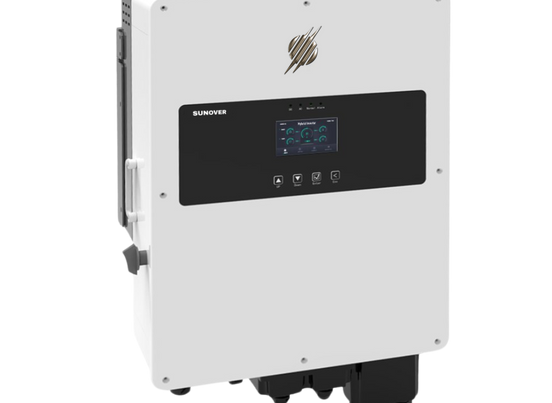

Sunover 5KW-10KW VIGXA-G hybrid inverter is a multi-mode string inverters compatible for residential power applications. It can manage power input from both solar power system and battery storage system to ensure the most efficient use of solar energy at home and small businesses, increase self-energy source, grid independence, and reduce your electricity bills, as well as VIGXA-G inverter series also connect to the grid. It could be connected to two AC power inputs so AC diesel generator could be connected as a second source of backup power to achieve the optimum of output power consistency. This series of hybrid inverters produced by sunover in sizes, 5kw, 6kw, 8kw and 10kw output power. It could be connected upto 20 units in parallel, either of the same size or different sizes of units.
VIGXA-G-5-10KW Technical data
Model | VIGXA-G5 VIGXA-G6 VIGXA-G8 VIGXA-G10 | |
Battery Input Data | ||
Battery Type | Lead-acid or Li-Lon | |
Battery Voltage Range (V) | 40-60 | |
Max. Charge Current (A) | 120 140 190 210 | |
Max. Discharge Current (A) | 120 140 190 210 | |
Charging Curve | 3 Stages/Equalization | |
External Temperature Sensor | Optional | |
Charging Strategy for Li-Ion Battery | Self-Adaption to BMS | |
PV string Input Data | ||
Max. DC Input Power (W) | 7,500 9,000 12,000 15,000 | |
PV Input Voltage (V) | 370(125~500) | |
MPPT Range (V) | 150~425 | |
Start-up Voltage (V) | 120 | |
PV Input Current (A) | 17+17 17+17 26+26 26+26 | |
Max. PV ISC (A) | 20+20 20+20 34+34 34+34 | |
No. of MPPT Trackers | 2 2 2 2 | |
No. of String Per MPPT Tracker | 1+1 1+1 2+2 2+2 | |
AC Output Data | ||
Rated AC Output Power and UPS Power (W) | 5,000 6,000 8,000 10000 | |
Max. AC Output Power (W) | 6,000 7,200 9,600 12000 | |
Peak Power(off grid)/10s | 2 times of rated power 1.8 times of rated power | |
AC Output Rated Current (A) | 22.7/21.7 27.3/26.1 34.5/33 45.5/43.5 | |
Max. AC Current (A) | 25/23.9 30/28.7 40/38.3 50/47.8 | |
Max. Continuous AC Passthrough (A) | 40 40 50 60 | |
Power Factor | 0.8 leading to 0.8 lagging | |
Output Frequency and Voltage | 50/60Hz,220/230Vac(single phase) | |
Grid Type | single phase | |
Current Harmonic Distortion | THD<3%(Linear load <1.5%) | |
Efficiency | ||
Max. Efficiency | 97.90% | |
Euro Efficiency | 96.90% | |
MPPT Efficiency | 99.90% | |
Protection | ||
Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation. Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection | |
PV ARC Fault Detection | Optional | |
Output Over Voltage Protection | DC Type II/AC Type III | |
Certification and Standards | ||
Grid Regulation | CEI 0-21,VDE-AR-N 4105,NRS 097,IEC61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11 | |
EMC/Safety Regulation | IEC/EN 62109-1 IEC/EN 62109-2,IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4 | |
General Data | ||
Operating Temperature Range(℃) | -45~60,＞45 Derating | |
Cooling | Smart cooling | |
Noise(dB) | ≤45 | |
Communication with BMS | CAN, RS485 | |
Weight (kg) | 34 | |
Dimensions (mm) | 567W ×467H ×292D | |
Protection Degree | IP65 | |
Installation Style | Wall-mounted |
